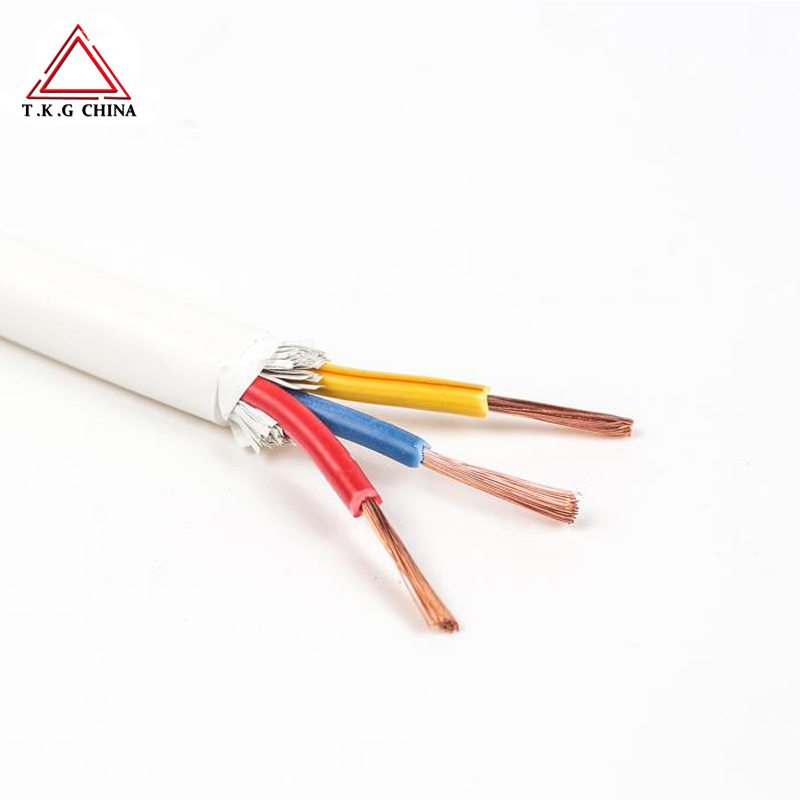

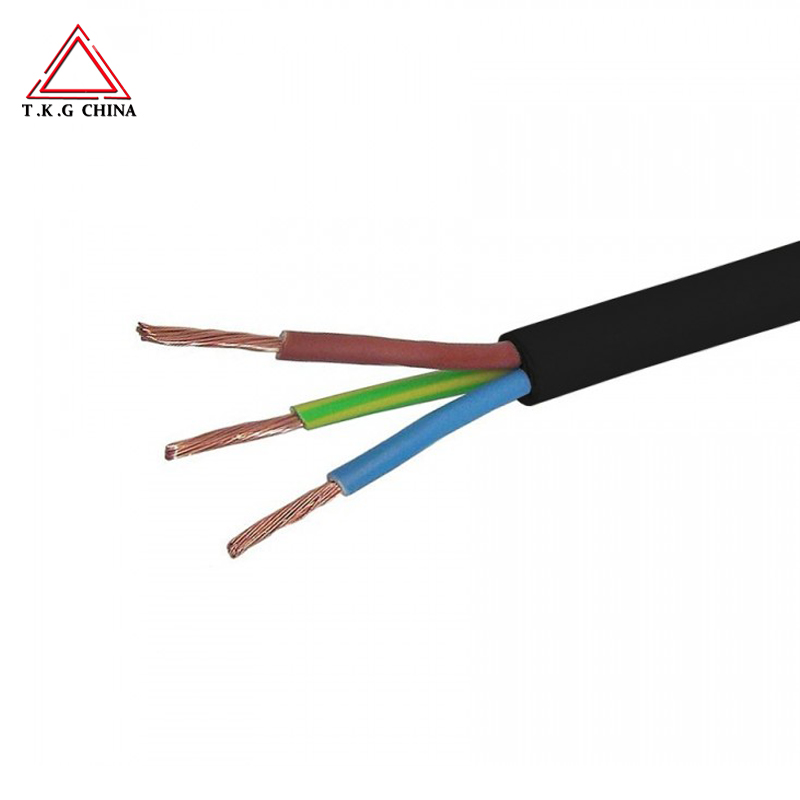

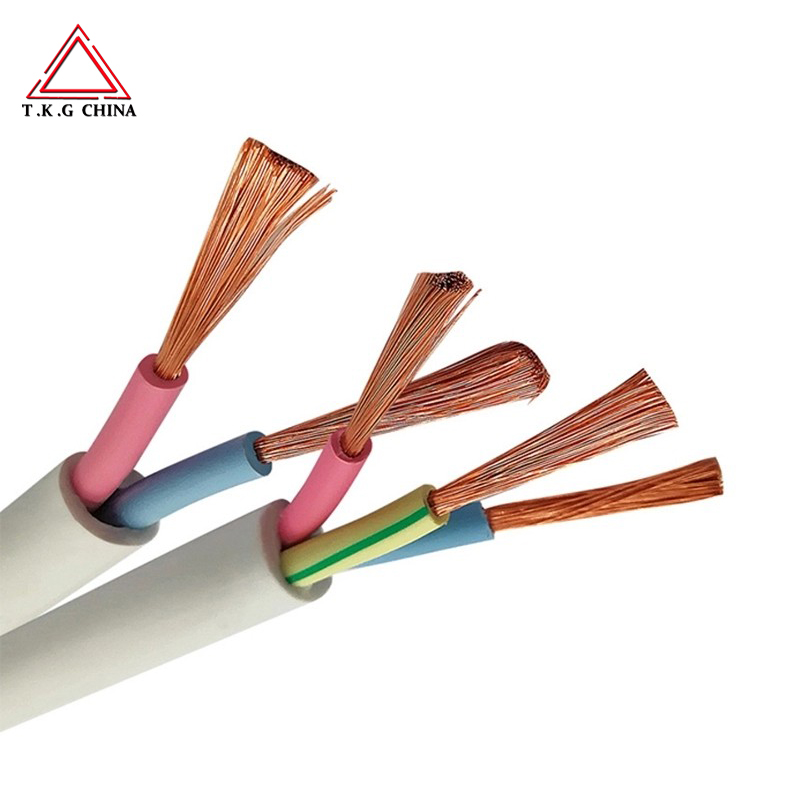

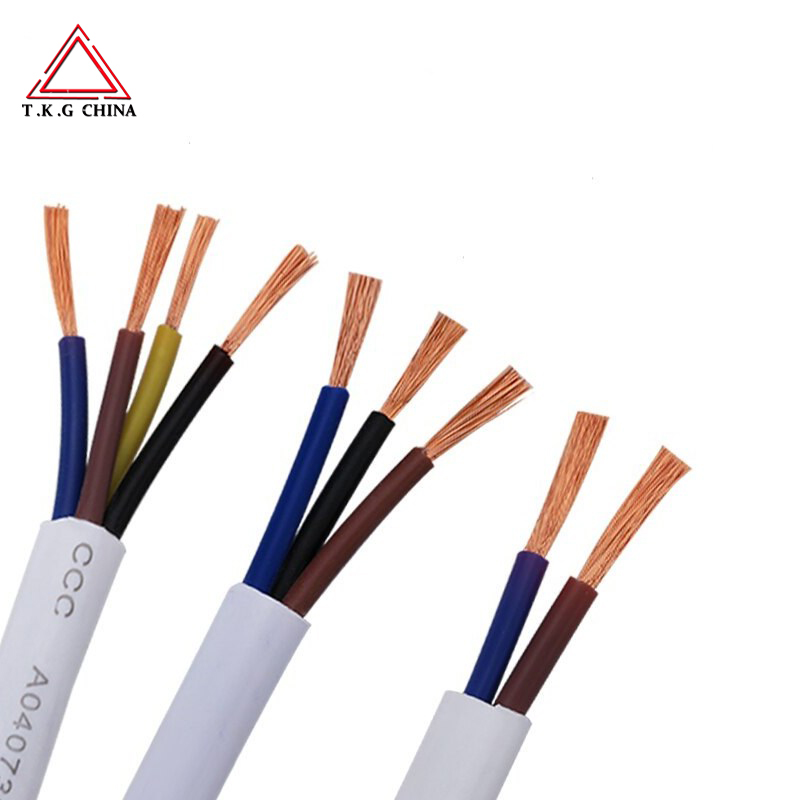

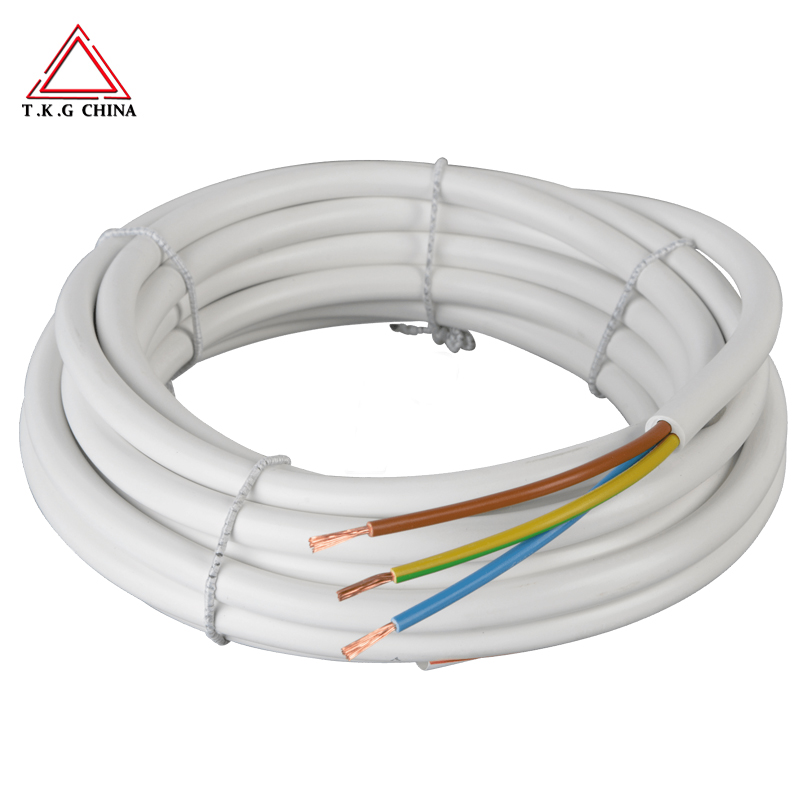

Standard multi core pvc insulated twin and earth flat electric cable for house use

产品详情

材质	COPPER	颜色	BLACK
品牌	TKG	型号	RVV

2023630


No. of cores × nominal cross section mm2	Diameter of single-wire max. mm	Diameter of core nom. mm	Outer dimension or outer diameter nom. mm
2×0.75	0.21	2.3	6.4
2×1.0	0.21	2.5	6.7
2×1.5	0.26	3	7.6
2×2.5	0.26	3.7	9.5
2×4.0	0.31	4.2	10.8
3G0.75	0.21	2.3	6.8
3G1.0	0.21	2.5	7.1
3G1.5	0.26	3	8.2
3G2.5	0.26	3.7	10.4
3G4.0	0.31	4.2	11.7
4G0.75	0.21	2.3	7.4
4G1.0	0.21	2.5	7.9
4G1.5	0.26	3	9.2
4G2.5	0.26	3.7	11.3
4G4.0	0.31	4.2	12.7
5G0.75	0.21	2.3	8.3
5G1.0	0.21	2.5	8.7
5G1.5	0.26	3	10.4
5G2.5	0.26	3.7	12.6
5G4.0	0.31	4.2	14.4
