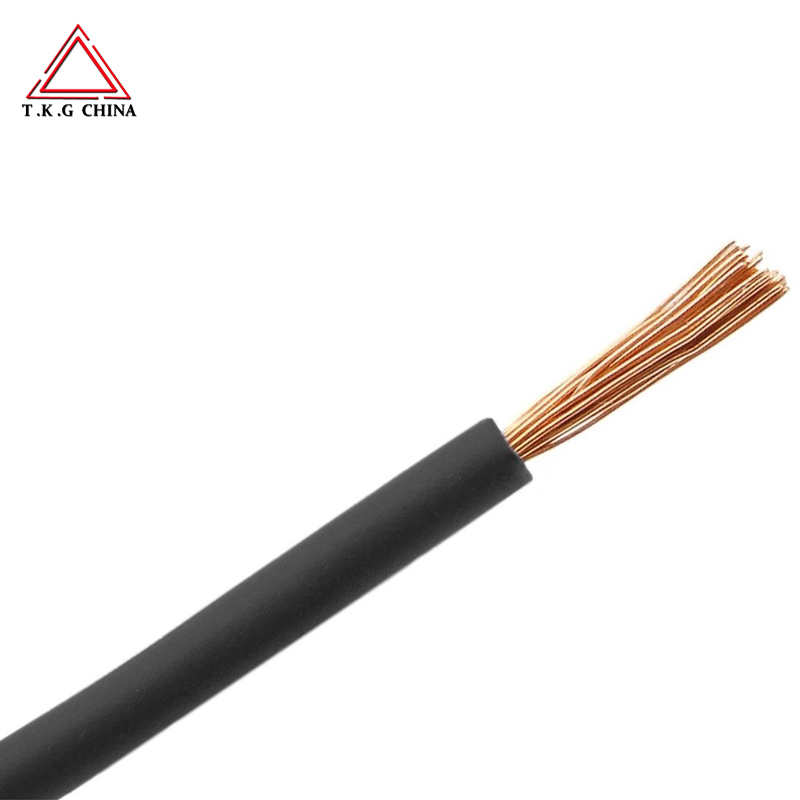

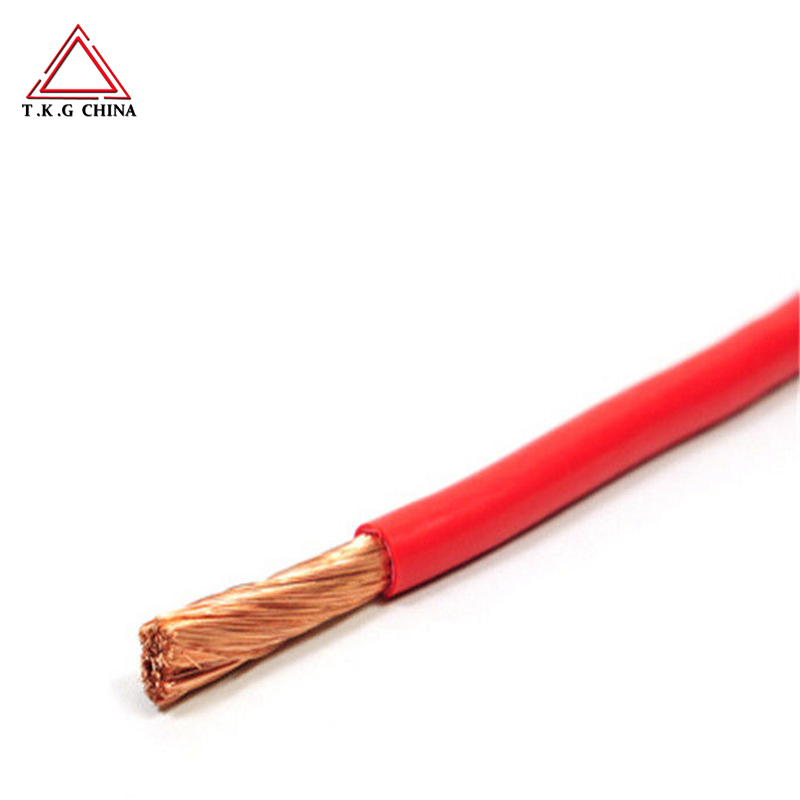

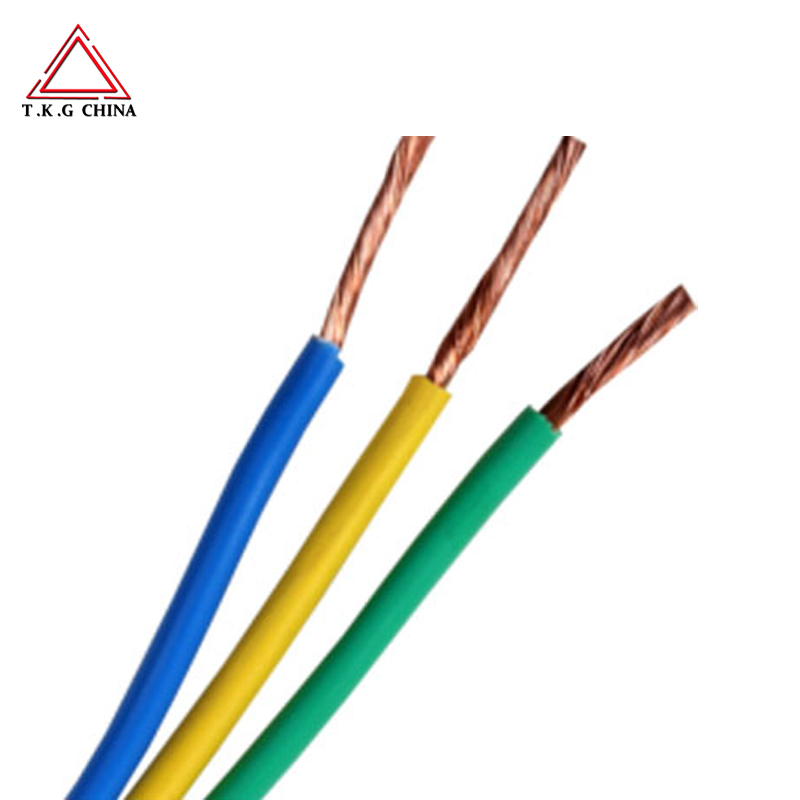

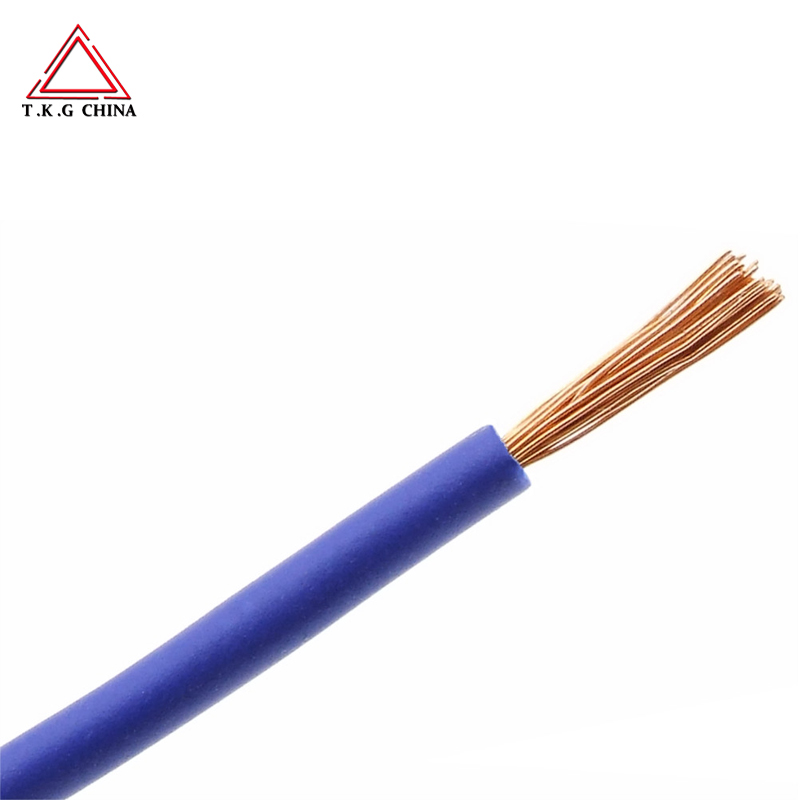

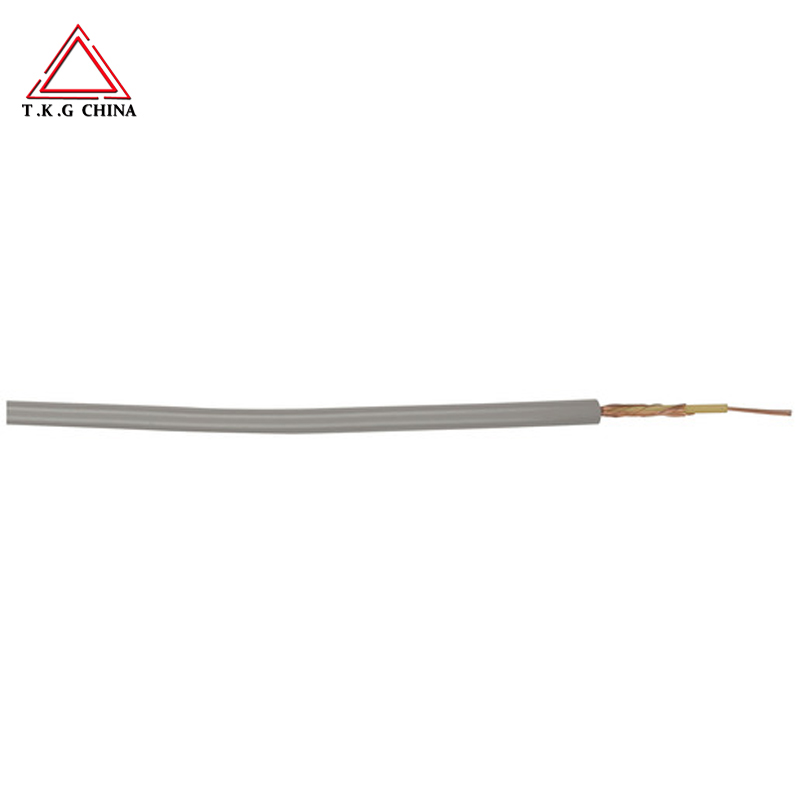

Single cable 0.5mm² 0.75mm² 1.0mm² 1.5mm² 2.5mm² 4.0mm² insulated pvc flexible electric wires cable

Technical Specification

Single Core PVC Insulated Non-Sheathed general purpose cable 450/750 V

Standard

BS 6004.

Application Suitable for use in channels with cover, suitable for fixed protected installation inor on light fittings and inside appliances, switchgear and control gear, for voltageup to 1000 V a.c. or up to 750 V to earth d.c.

Conductor Flexible class 5 copper conductors to BSEN 60228.

Insulation PVC Type TI 1 to EN 50363-3.

Voltage Rating 450/750 V.

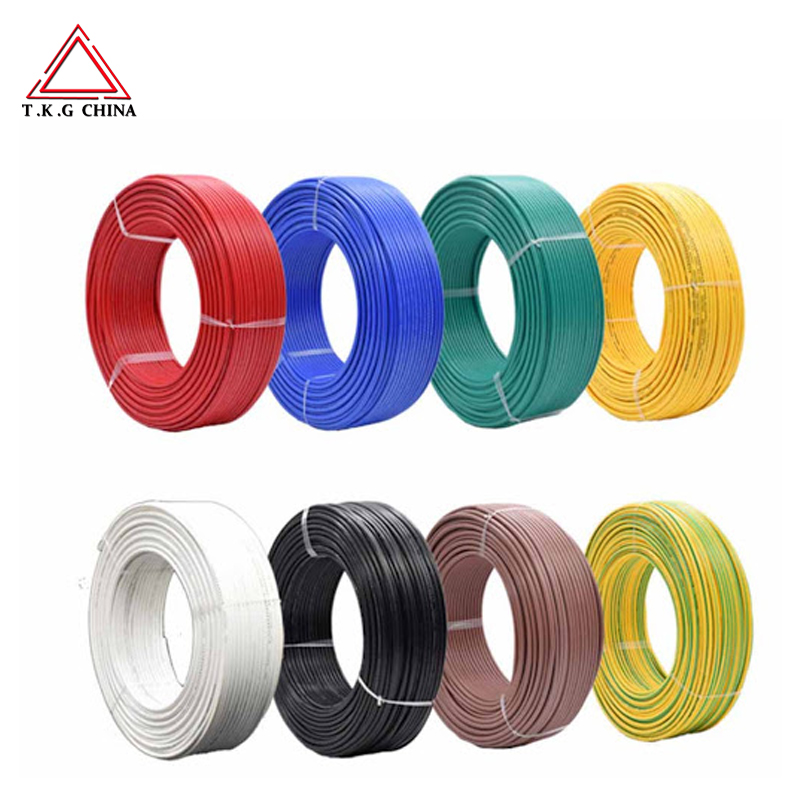

Packing Coils or Plastic Spools in 100 meters for sizes up to 16 mm2

Sizes more than 16 mm2 shall be 500 or 1000 meters packed in wooden drums.

Other lengths are available upon customer request.
